Home 2019 BMW 228iX Gran Coupe B46D Fuel Injection System

Fuel Injection System for 2019 BMW 228iX

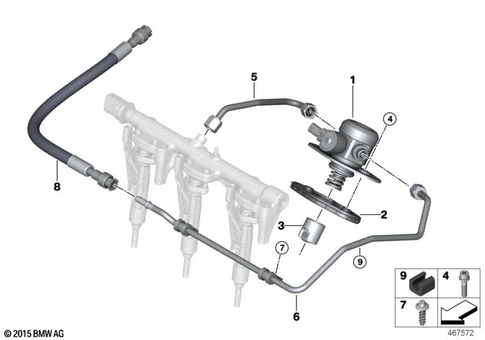

Fuel Injection System for 2019 BMW 228iX #0

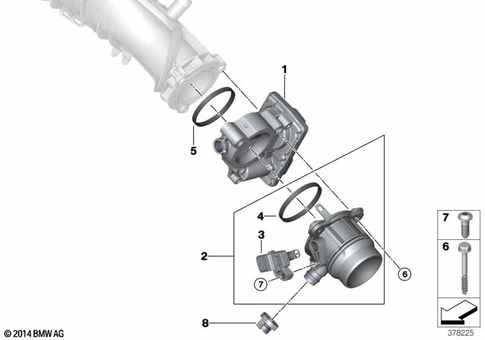

Fuel Injection System for 2019 BMW 228iX #1

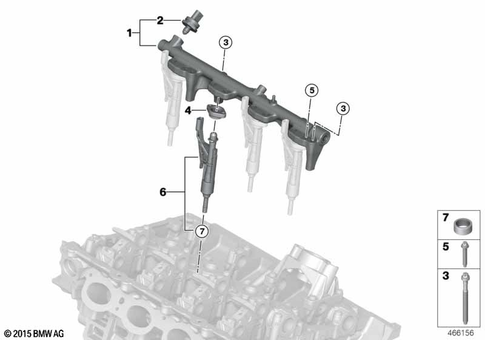

Fuel Injection System for 2019 BMW 228iX #2

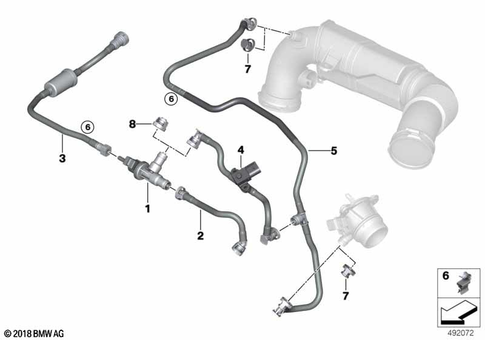

Fuel Injection System for 2019 BMW 228iX #3

No.

Part # / Description / Price

1

13518631642 - Fuel Preparation System: High-Pressure Pump for BMW: 228i, 228iX, 230i, 230iX, 330e, 330eX, 330i, 330iX, 430i, 430iX, 530e, 530eX, 530i, 530iX, 540i, 540iX, 640iX, 740i, 740iX, 745eX, 840i, 840iX, G82 M4 GT4, M2, M2 CS, M2 Racing, M235iX, M240i, M240iX, M3, M3 Comp. M xDrive, M3 Competition, M3 CS, M340i, M340iX, M4, M4 Comp. M xDrive, M4 Competition, M4 CS, M4 CSL, M440i, M440iX, X1 28i, X1 28iX, X2 28i, X2 28iX, X2 M35iX, X3 30eX, X3 30i, X3 30iX, X3 M, X3 M40iX, X4 30iX, X4 M, X4 M40iX, X5 40i, X5 40iX, X5 45eX, X6 40i, X6 40iX, X7 40iX, Z4 30i, Z4 M40i Image image

High-Pressure Pump

BMW

BMW

2

Profile-Gasket

MSRP $21.45 CAD

BMW

BMW

3

11328629250 - Fuel Preparation System: Cam Follower for BMW: 228, 228 xDrive, 228i, 228iX, 230i, 230iX, 330e, 330eX, 330i, 330iX, 430i, 430iX, 530e, 530eX, 530i, 530iX, 540i, 540iX, 550eX, 640iX, 740i, 740iX, 745eX, 750eX, 750iX, 760iX, 840i, 840iX, BMW ALPINA B7, BMW ALPINA B8, BMW ALPINA XB7, G82 M4 GT4, M2, M2 CS, M2 Racing, M235 xDrive, M235iX, M240i, M240iX, M3, M3 Comp. M xDrive, M3 Competition, M3 CS, M340i, M340iX, M4, M4 Comp. M xDrive, M4 Competition, M4 CS, M4 CSL, M440i, M440iX, M5, M5 CS, M550iX, M760iX, M8, M850iX, X1 28i, X1 28iX, X1 M35iX, X2 28i, X2 28iX, X2 M35iX, X3 30 xDrive, X3 30eX, X3 30i, X3 30iX, X3 M, X3 M40iX, X3 M50 xDrive, X4 30iX, X4 M, X4 M40iX, X5 40i, X5 40iX, X5 45eX, X5 50eX, X5 50iX, X5 M, X5 M Comp., X5 M50iX, X5 M60iX, X6 40i, X6 40iX, X6 M, X6 M Comp., X6 M50iX, X6 M60iX, X7 40iX, X7 50iX, X7 M50iX, X7 M60iX, XM, XM Label, Z4 30i, Z4 M40i Image image

Cam Follower

MSRP $115.30 CAD

BMW

BMW

4

13517632572 - Fuel Preparation System: Isa Screw with Washer for BMW: 135i, 228, 228 xDrive, 228i, 228iX, 230i, 230iX, 320i, 320iX, 328i, 328iX, 330e, 330eX, 330i, 330iX, 335i, 335iX, 335xi, 340i, 340iX, 428i, 428iX, 430i, 430iX, 435i, 435iX, 440i, 440iX, 528i, 528iX, 530e, 530eX, 530i, 530iX, 535i, 535iX, 540i, 540iX, 550eX, 640i, 640iX, 740eX, 740i, 740iX, 740Li, 740LiX, 745eX, 750eX, 750i, 750iX, 840i, 840iX, BMW ALPINA B7, G82 M4 GT4, Hybrid 3, Hybrid 5, Hybrid 7L, i3 120Ah, i3 120Ah Rex, i3 60Ah, i3 60Ah Rex, i3 94Ah, i3 94Ah Rex, i3s 120Ah, i3s 120Ah Rex, i3s 94Ah, i3s 94Ah Rex, i8, M2, M2 Competition, M2 CS, M2 CS Racing, M2 Racing, M235 xDrive, M235i, M235iX, M240i, M240iX, M3, M3 Comp. M xDrive, M3 Competition, M3 CS, M340i, M340iX, M4, M4 Comp. M xDrive, M4 Competition, M4 CS, M4 CSL, M4 GTS, M440i, M440iX, M760iX, X1 28i, X1 28iX, X1 35iX, X1 M35iX, X2 28i, X2 28iX, X2 M35iX, X3 28dX, X3 28i, X3 28iX, X3 30 xDrive, X3 30eX, X3 30i, X3 30iX, X3 35iX, X3 M, X3 M40iX, X3 M50 xDrive, X4 28iX, X4 30iX, X4 35iX, X4 M, X4 M40iX, X5 35dX, X5 35i, X5 35iX, X5 40eX, X5 40i, X5 40iX, X5 45eX, X5 50eX, X6 35i, X6 35iX, X6 40i, X6 40iX, X7 40iX, Z4 28i, Z4 30i, Z4 M40i Image image

Isa Screw With Washer

MSRP $3.13 CAD

BMW

BMW

5

13535B74496 - Fuel Preparation System: High Pressure Pipe for BMW: 228, 228 xDrive, 228i, 228iX, 230i, 230iX, 330e, 330eX, 330i, 330iX, 430i, 430iX, 530e, 530eX, 530i, 530iX, M235 xDrive, M235iX, X1 28i, X1 28iX, X1 M35iX, X2 28i, X2 28iX, X2 M35iX, X3 30 xDrive, X3 30eX, X3 30i, X3 30iX, X4 30iX, Z4 30i Image image

High Pressure Pipe

BMW

BMW

5

13538489570 - Fuel Preparation System: High Pressure Line for BMW: 228, 228 xDrive, 228i, 228iX, 230i, 230iX, 330e, 330eX, 330i, 330iX, 430i, 430iX, 530e, 530eX, 530i, 530iX, M2 Racing, M235 xDrive, M235iX, X1 28i, X1 28iX, X1 M35iX, X2 28i, X2 28iX, X2 M35iX, X3 30 xDrive, X3 30eX, X3 30i, X3 30iX, X4 30iX, Z4 30i Image image

High Pressure Line

MSRP $160.64 CAD

BMW

BMW

6

13538665628 - Fuel Preparation System: Supply Line to Engine Compartment for BMW: 228i, 228iX, M235iX, X1 28i, X1 28iX, X2 28i, X2 28iX, X2 M35iX Image image

Supply Line To Engine Compartment

BMW

BMW

7

11367609963 - Fuel Preparation System: Asa Screw, Self-Threading for BMW: 135i, 228, 228 xDrive, 228i, 228iX, 230i, 230iX, 320i, 320iX, 328i, 328iX, 330e, 330eX, 330i, 330iX, 335i, 335iX, 335xi, 340i, 340iX, 428i, 428iX, 430i, 430iX, 435i, 435iX, 440i, 440iX, 528i, 528iX, 530e, 530eX, 530i, 530iX, 535i, 535iX, 540i, 540iX, 550eX, 640i, 640iX, 740eX, 740i, 740iX, 740Li, 740LiX, 745eX, 750eX, 840i, 840iX, G82 M4 GT4, Hybrid 3, Hybrid 5, Hybrid 7L, i8, M2, M2 Competition, M2 CS, M2 CS Racing, M2 Racing, M235 xDrive, M235i, M235iX, M240i, M240iX, M3, M3 Comp. M xDrive, M3 Competition, M3 CS, M340i, M340iX, M4, M4 Comp. M xDrive, M4 Competition, M4 CS, M4 CSL, M4 GTS, M440i, M440iX, M550iX, X1 28i, X1 28iX, X1 35iX, X1 M35iX, X2 28i, X2 28iX, X2 M35iX, X3 28i, X3 28iX, X3 30 xDrive, X3 30eX, X3 30i, X3 30iX, X3 35iX, X3 M, X3 M40iX, X3 M50 xDrive, X4 28iX, X4 30iX, X4 35iX, X4 M, X4 M40iX, X5 35i, X5 35iX, X5 40eX, X5 40i, X5 40iX, X5 45eX, X5 50eX, X6 35i, X6 35iX, X6 40i, X6 40iX, X7 40iX, Z4 28i, Z4 30i, Z4 M40i Image image

Asa Screw, Self-Threading

MSRP $1.68 CAD

BMW

BMW

8

13535A03E29 - Fuel Preparation System: Fuel Hose for BMW: 228i, 228iX, M235iX Image image

Fuel Hose

BMW

BMW

9

13537639983 - Fuel Preparation System: Damper Rubber for BMW: 228i, 228iX, 230i, 230iX, 330e, 330eX, 330i, 330iX, 340i, 340iX, 430i, 430iX, 440i, 440iX, 530e, 530eX, 530i, 530iX, 540i, 540iX, 640iX, 740eX, 740i, 740iX, 745eX, 840i, 840iX, i8, M2 Racing, M235iX, M240i, M240iX, M340i, M340iX, M440i, M440iX, X1 28i, X1 28iX, X2 28i, X2 28iX, X2 M35iX, X3 30eX, X3 30i, X3 30iX, X3 M40iX, X4 30iX, X4 M40iX, X5 40i, X5 40iX, X5 45eX, X6 40i, X6 40iX, X7 40iX, Z4 30i, Z4 M40i Image image

Damper Rubber

MSRP $6.23 CAD

BMW

BMW

No.

Part # / Description / Price

1

13547619008 - Fuel Preparation System: Throttle for BMW: 228, 228 xDrive, 228i, 228iX, 750i, 750iX, 760iX, BMW ALPINA B7, BMW ALPINA B8, BMW ALPINA XB7, M235 xDrive, M235iX, M5, M5 CS, M550iX, M8, M850iX, X1 28i, X1 28iX, X1 M35iX, X2 28i, X2 28iX, X2 M35iX, X5 50iX, X5 M, X5 M Comp., X5 M50iX, X5 M60iX, X6 M, X6 M Comp., X6 M50iX, X6 M60iX, X7 50iX, X7 M50iX, X7 M60iX, XM, XM Label Image image

Throttle

MSRP $874.81 CAD

BMW

BMW

2

13718650760 - Fuel Preparation System: Charge Air Tube for BMW: 228i, 228iX, M235iX, X1 28i, X1 28iX, X2 28i, X2 28iX, X2 M35iX Image image

Charge Air Tube

BMW

BMW

3

13628637897 - Fuel Preparation System: T-Map Sensor for BMW: 228i, 228iX, i8, M235iX, X1 28i, X1 28iX, X2 28i, X2 28iX, X2 M35iX Image image

T-Map Sensor

MSRP $219.81 CAD

BMW

BMW

4

13718678890 - Fuel Preparation System: Gasket for BMW: 228i, 228iX, M235iX, X1 28i, X1 28iX, X2 28i, X2 28iX, X2 M35iX Image image

Gasket

MSRP $19.89 CAD

BMW

BMW

5

11617633558 - Fuel Preparation System: Gasket, Throttle Body for BMW: 228, 228 xDrive, 228i, 228iX, 750i, 750iX, BMW ALPINA B7, BMW ALPINA B8, BMW ALPINA XB7, M235 xDrive, M235iX, M550iX, M850iX, X1 28i, X1 28iX, X1 M35iX, X2 28i, X2 28iX, X2 M35iX, X5 50iX, X5 M50iX, X6 M50iX, X7 50iX, X7 M50iX Image image

Gasket, Throttle Body

MSRP $20.45 CAD

BMW

BMW

6

13547561349 - Fuel Preparation System: Hex Bolt for BMW: 135i, 228, 228 xDrive, 228i, 228iX, 230i, 230iX, 320i, 320iX, 328i, 328iX, 330e, 330eX, 330i, 330iX, 335i, 335iX, 335xi, 340i, 340iX, 428i, 428iX, 430i, 430iX, 435i, 435iX, 440i, 440iX, 528i, 528iX, 530e, 530eX, 530i, 530iX, 535i, 535iX, 540dX, 540i, 540iX, 550eX, 550i, 550iX, 640i, 640iX, 650i, 650iX, 740eX, 740i, 740iX, 740Li, 740LiX, 745eX, 750eX, 750i, 750iX, 750Li, 750LiX, 760iX, 840i, 840iX, BMW ALPINA B6, BMW ALPINA B7, BMW ALPINA B7L, BMW ALPINA B7LX, BMW ALPINA B7X, BMW ALPINA B8, BMW ALPINA XB7, G82 M4 GT4, Hybrid 3, Hybrid 5, Hybrid 7, Hybrid 7L, Hybrid X6, M2, M2 Competition, M2 CS, M2 CS Racing, M2 Racing, M235 xDrive, M235i, M235iX, M240i, M240iX, M3, M3 Comp. M xDrive, M3 Competition, M3 CS, M340i, M340iX, M4, M4 Comp. M xDrive, M4 Competition, M4 CS, M4 CSL, M4 GTS, M440i, M440iX, M5, M5 CS, M550iX, M6, M8, M850iX, X1 28i, X1 28iX, X1 35iX, X1 M35iX, X2 28i, X2 28iX, X2 M35iX, X3 28i, X3 28iX, X3 30 xDrive, X3 30eX, X3 30i, X3 30iX, X3 35iX, X3 M, X3 M40iX, X3 M50 xDrive, X4 28iX, X4 30iX, X4 35iX, X4 M, X4 M40iX, X5 35i, X5 35iX, X5 40eX, X5 40i, X5 40iX, X5 45eX, X5 50eX, X5 50iX, X5 M, X5 M Comp., X5 M50iX, X5 M60iX, X6 35i, X6 35iX, X6 40i, X6 40iX, X6 50iX, X6 M, X6 M Comp., X6 M50iX, X6 M60iX, X7 40iX, X7 50iX, X7 M50iX, X7 M60iX, XM, XM Label, Z4 28i, Z4 30i, Z4 M40i Image image

Hex Bolt

MSRP $4.84 CAD

BMW

BMW

7

7119907480 - Fuel Preparation System: Torx-Bolt for Plastic Material for BMW: 228, 228 xDrive, 228i, 228iX, 230i, 230iX, 318i, 320i, 323Ci, 323i, 325Ci, 325i, 325xi, 328Ci, 328d, 328dX, 328i, 330Ci, 330e, 330eX, 330i, 330iX, 330xi, 335d, 340i, 340iX, 430i, 430iX, 440i, 440iX, 525i, 528i, 530e, 530eX, 530i, 530iX, 535d, 535dX, 540dX, 540i, 540iX, 550eX, 640iX, 740eX, 740i, 740iX, 740LdX, 745eX, 750eX, 750iX, 760iX, 840i, 840iX, BMW ALPINA B7, BMW ALPINA B8, BMW ALPINA V8, i3 120Ah, i3 120Ah Rex, i3 60Ah, i3 60Ah Rex, i3 94Ah, i3 94Ah Rex, i3s 120Ah, i3s 120Ah Rex, i3s 94Ah, i3s 94Ah Rex, i4 eDrive35, i4 eDrive40, i4 M50, i4 M50 xDrive, i4 M60 xDrive, i4 xDrive40, i7 eDrive50, i7 M70 xDrive, i7 xDrive60, i8, iX M60, iX M70 xDrive, iX xDrive40, iX xDrive45, iX xDrive50, iX xDrive60, M2, M2 CS, M2 Racing, M235 xDrive, M235iX, M240i, M240iX, M3, M3 3.2, M3 Comp. M xDrive, M3 Competition, M3 CS, M340i, M340iX, M4, M4 Comp. M xDrive, M4 Competition, M4 CS, M4 CSL, M440i, M440iX, M760iX, M8, M850iX, X1 28i, X1 28iX, X1 M35iX, X2 28i, X2 28iX, X2 M35iX, X3 28dX, X3 30 xDrive, X3 30eX, X3 30i, X3 30iX, X3 M, X3 M40iX, X3 M50 xDrive, X4 30iX, X4 M, X4 M40iX, X5 3.0i, X5 3.5d, X5 35dX, X5 35i, X5 35iX, X5 4.4i, X5 4.6is, X5 4.8is, X5 40eX, X5 40i, X5 40iX, X5 45eX, X5 50eX, X5 50iX, X5 M, X6 35i, X6 35iX, X6 40i, X6 40iX, X6 50iX, X6 M, X7 40iX, Z4 2.5i, Z4 3.0i, Z4 3.0si, Z4 30i, Z4 M3.2, Z4 M40i, Z8 Image image

Torx-Bolt For Plastic Material

MSRP $3.63 CAD

BMW

BMW

No.

Part # / Description / Price

1

13538665633 - Fuel Preparation System: High-Pressure Rail for BMW: 228, 228 xDrive, 228i, 228iX, 230i, 230iX, 330e, 330eX, 330i, 330iX, 430i, 430iX, 530e, 530eX, 530i, 530iX, M2 Racing, M235 xDrive, M235iX, X1 28i, X1 28iX, X1 M35iX, X2 28i, X2 28iX, X2 M35iX, X3 30 xDrive, X3 30eX, X3 30i, X3 30iX, X4 30iX, Z4 30i Image image

High-Pressure Rail

BMW

BMW

2

13538631820 - Fuel Preparation System: Sensor, High-Pressure for BMW: 228, 228 xDrive, 228i, 228iX, 230i, 230iX, 330e, 330eX, 330i, 330iX, 430i, 430iX, 530e, 530eX, 530i, 530iX, 540i, 540iX, 550eX, 640iX, 740i, 740iX, 745eX, 750eX, 750iX, 760iX, 840i, 840iX, BMW ALPINA B7, BMW ALPINA B8, BMW ALPINA XB7, G82 M4 GT4, M2, M2 CS, M2 Racing, M235 xDrive, M235iX, M240i, M240iX, M3, M3 Comp. M xDrive, M3 Competition, M3 CS, M340i, M340iX, M4, M4 Comp. M xDrive, M4 Competition, M4 CS, M4 CSL, M440i, M440iX, M5, M5 CS, M550iX, M760iX, M8, M850iX, X1 28i, X1 28iX, X1 M35iX, X2 28i, X2 28iX, X2 M35iX, X3 30 xDrive, X3 30eX, X3 30i, X3 30iX, X3 M, X3 M40iX, X3 M50 xDrive, X4 30iX, X4 M, X4 M40iX, X5 40i, X5 40iX, X5 45eX, X5 50eX, X5 50iX, X5 M, X5 M Comp., X5 M50iX, X5 M60iX, X6 40i, X6 40iX, X6 M, X6 M Comp., X6 M50iX, X6 M60iX, X7 40iX, X7 50iX, X7 M50iX, X7 M60iX, XM, XM Label, Z4 30i, Z4 M40i Image image

Sensor, High-Pressure

MSRP $164.84 CAD

BMW

BMW

3

13538661715 - Fuel Preparation System: Star-Socket Screw for BMW: 228, 228 xDrive, 228i, 228iX, 230i, 230iX, 330e, 330eX, 330i, 330iX, 340i, 340iX, 430i, 430iX, 440i, 440iX, 530e, 530eX, 530i, 530iX, 540i, 540iX, 550eX, 640iX, 740eX, 740i, 740iX, 745eX, 750eX, 840i, 840iX, G82 M4 GT4, i8, M2, M2 CS, M2 Racing, M235 xDrive, M235iX, M240i, M240iX, M3, M3 Comp. M xDrive, M3 Competition, M3 CS, M340i, M340iX, M4, M4 Comp. M xDrive, M4 Competition, M4 CS, M4 CSL, M440i, M440iX, X1 28i, X1 28iX, X1 M35iX, X2 28i, X2 28iX, X2 M35iX, X3 30 xDrive, X3 30eX, X3 30i, X3 30iX, X3 M, X3 M40iX, X3 M50 xDrive, X4 30iX, X4 M, X4 M40iX, X5 40i, X5 40iX, X5 45eX, X5 50eX, X6 40i, X6 40iX, X7 40iX, Z4 30i, Z4 M40i Image image

Star-Socket Screw

MSRP $3.66 CAD

BMW

BMW

4

13538642294 - Fuel Preparation System: Bracket Injector for BMW: 228, 228 xDrive, 228i, 228iX, 230i, 230iX, 330e, 330eX, 330i, 330iX, 340i, 340iX, 430i, 430iX, 440i, 440iX, 530e, 530eX, 530i, 530iX, 540i, 540iX, 550eX, 640iX, 740eX, 740i, 740iX, 745eX, 750eX, 840i, 840iX, G82 M4 GT4, i8, M2, M2 CS, M2 Racing, M235 xDrive, M235iX, M240i, M240iX, M3, M3 Comp. M xDrive, M3 Competition, M3 CS, M340i, M340iX, M4, M4 Comp. M xDrive, M4 Competition, M4 CS, M4 CSL, M440i, M440iX, X1 28i, X1 28iX, X1 M35iX, X2 28i, X2 28iX, X2 M35iX, X3 30 xDrive, X3 30eX, X3 30i, X3 30iX, X3 M, X3 M40iX, X3 M50 xDrive, X4 30iX, X4 M, X4 M40iX, X5 40i, X5 40iX, X5 45eX, X5 50eX, X6 40i, X6 40iX, X7 40iX, Z4 30i, Z4 M40i Image image

Bracket Injector

MSRP $24.70 CAD

BMW

BMW

5

13538661716 - Fuel Preparation System: Star-Socket Screw for BMW: 228, 228 xDrive, 228i, 228iX, 230i, 230iX, 330e, 330eX, 330i, 330iX, 340i, 340iX, 430i, 430iX, 440i, 440iX, 530e, 530eX, 530i, 530iX, 540i, 540iX, 550eX, 640iX, 740eX, 740i, 740iX, 745eX, 750eX, 840i, 840iX, G82 M4 GT4, i8, M2, M2 CS, M2 Racing, M235 xDrive, M235iX, M240i, M240iX, M3, M3 Comp. M xDrive, M3 Competition, M3 CS, M340i, M340iX, M4, M4 Comp. M xDrive, M4 Competition, M4 CS, M4 CSL, M440i, M440iX, X1 28i, X1 28iX, X1 M35iX, X2 28i, X2 28iX, X2 M35iX, X3 30 xDrive, X3 30eX, X3 30i, X3 30iX, X3 M, X3 M40iX, X3 M50 xDrive, X4 30iX, X4 M, X4 M40iX, X5 40i, X5 40iX, X5 45eX, X5 50eX, X6 40i, X6 40iX, X7 40iX, Z4 30i, Z4 M40i Image image

Star-Socket Screw

MSRP $2.11 CAD

BMW

BMW

6

13538656548 - Fuel Preparation System: Injector for BMW: 228i, 228iX, 230i, 230iX, 330e, 330eX, 330i, 330iX, 430i, 430iX, 530e, 530eX, 530i, 530iX, 540i, 540iX, 640iX, 740i, 740iX, 745eX, 840i, 840iX, M2 Racing, M240i, M240iX, M340i, M340iX, M440i, M440iX, X1 28i, X1 28iX, X2 28i, X2 28iX, X3 30eX, X3 30i, X3 30iX, X3 M40iX, X3 M50 xDrive, X4 30iX, X4 M40iX, X5 40i, X5 40iX, X5 45eX, X6 40i, X6 40iX, X7 40iX, Z4 30i, Z4 M40i Image image

Injector

MSRP $649.84 CAD

BMW

BMW

7

13539847174 - Fuel Preparation System: Gasket Ring for BMW: 228, 228 xDrive, 228i, 228iX, 230i, 230iX, 330e, 330eX, 330i, 330iX, 430i, 430iX, 530e, 530eX, 530i, 530iX, 540i, 540iX, 550eX, 640iX, 740i, 740iX, 745eX, 750eX, 750iX, 760iX, 840i, 840iX, BMW ALPINA B7, BMW ALPINA B8, BMW ALPINA XB7, G82 M4 GT4, M2, M2 CS, M2 Racing, M235 xDrive, M235iX, M240i, M240iX, M3, M3 Comp. M xDrive, M3 Competition, M3 CS, M340i, M340iX, M4, M4 Comp. M xDrive, M4 Competition, M4 CS, M4 CSL, M440i, M440iX, M5, M5 CS, M550iX, M760iX, M8, M850iX, X1 28i, X1 28iX, X1 M35iX, X2 28i, X2 28iX, X2 M35iX, X3 30 xDrive, X3 30eX, X3 30i, X3 30iX, X3 M, X3 M40iX, X3 M50 xDrive, X4 30iX, X4 M, X4 M40iX, X5 40i, X5 40iX, X5 45eX, X5 50eX, X5 50iX, X5 M, X5 M Comp., X5 M50iX, X5 M60iX, X6 40i, X6 40iX, X6 M, X6 M Comp., X6 M50iX, X6 M60iX, X7 40iX, X7 50iX, X7 M50iX, X7 M60iX, XM, XM Label, Z4 30i, Z4 M40i Image image

Gasket Ring

MSRP $16.39 CAD

BMW

BMW

No.

Part # / Description / Price

1

13907614013 - Fuel Preparation System: Fuel Tank Breather Valve for BMW: 228i, 228iX, M235iX, X1 28i, X1 28iX, X2 28i, X2 28iX, X2 M35iX Image image

Fuel Tank Breather Valve

MSRP $199.38 CAD

BMW

BMW

2

13907626118 - Fuel Preparation System: Fuel Tank Breather Line for BMW: 228i, 228iX, M235iX, X1 28i, X1 28iX, X2 28i, X2 28iX, X2 M35iX Image image

Fuel Tank Breather Line

MSRP $82.06 CAD

BMW

BMW

3

13908670276 - Fuel Preparation System: Fuel Tank Breath.Line with Resonator for BMW: 228i, 228iX, M235iX, X1 28i, X1 28iX, X2 28i, X2 28iX, X2 M35iX Image image

Fuel Tank Breath.Line With Resonator

MSRP $167.85 CAD

BMW

BMW

4

13908671025 - Fuel Preparation System: Tank Evap Line with Pressure Sensor for BMW: 228i, 228iX, M235iX, X1 28i, X1 28iX, X2 28i, X2 28iX, X2 M35iX Image image

Tank Evaporative Line With Pressure Sensor

MSRP $167.85 CAD

BMW

BMW

Tank Evap Line with Pressure Sensor

5

13908671024 - Fuel Preparation System: Suction Jet Pump with Line for BMW: 228i, 228iX, M235iX, X1 28i, X1 28iX, X2 28i, X2 28iX, X2 M35iX Image image

Suction Jet Pump With Line

MSRP $149.18 CAD

BMW

BMW

6

34327698478 - Fuel Preparation System: Tubing Support for BMW: 228i, 228iX, 330e, 330eX, 330i, 330iX, 535i, 535iX, 540i, 540iX, 640i, 640iX, 740i, 740iX, 740Li, 740LiX, 745eX, 840i, 840iX, Hybrid 5, Hybrid 7L, M235iX, M240i, M240iX, M340i, M340iX, M440i, M440iX, X1 28i, X1 28iX, X2 28i, X2 28iX, X2 M35iX, X3 35iX, X3 M40iX, X4 35iX, X4 M40iX, X5 35i, X5 35iX, X5 40i, X5 40iX, X5 45eX, X6 35i, X6 35iX, X6 40i, X6 40iX, X7 40iX, Z4 30i, Z4 M40i Image image

Tubing Support

BMW

BMW

7

84210300311 - Fuel Preparation System: Not Offered By BMW for BMW: 228, 228 xDrive, 228i, 228iX, 230i, 230iX, 320i, 320iX, 323Ci, 323i, 325Ci, 325i, 325xi, 328Ci, 328d, 328dX, 328i, 328iX, 330Ci, 330e, 330eX, 330i, 330iX, 330xi, 428i, 428iX, 430i, 430iX, 435i, 525i, 528i, 528iX, 530e, 530eX, 530i, 530iX, 535d, 535dX, 535iX, 540dX, 540i, 540iP, 540iX, 550eX, 640iX, 740eX, 740i, 740iL, 740iLP, 740iX, 740LdX, 745eX, 750eX, 750i, 750iL, 750iLP, 750iX, 760i, 760iX, 760Li, BMW ALPINA B7, BMW ALPINA B7L, BMW ALPINA B7LX, BMW ALPINA B7X, BMW ALPINA V8, BMW ALPINA XB7, G82 M4 GT4, i4 eDrive35, i4 eDrive40, i4 M50, i4 M50 xDrive, i4 M60 xDrive, i4 xDrive40, i5 eDrive40, i5 M60 xDrive, i5 xDrive40, i7 eDrive50, i7 M70 xDrive, i7 xDrive60, i8, iX M60, iX M70 xDrive, iX xDrive40, iX xDrive45, iX xDrive50, iX xDrive60, M2, M2 CS, M2 Racing, M235 xDrive, M235iX, M3, M3 Comp. M xDrive, M3 Competition, M3 CS, M340i, M340iX, M4, M4 Comp. M xDrive, M4 Competition, M4 CS, M4 CSL, M440i, M440iX, M5, M5 CS, M550iX, M760iX, M8, X1 28i, X1 28iX, X1 M35iX, X2 28iX, X2 M35iX, X3 28dX, X3 28i, X3 28iX, X3 30 xDrive, X3 30eX, X3 30i, X3 30iX, X3 M40iX, X3 M50 xDrive, X4 28iX, X4 30iX, X4 M40iX, X5 3.0i, X5 35i, X5 35iX, X5 4.4i, X5 4.6is, X5 40eX, X5 40i, X5 40iX, X5 45eX, X5 50eX, X5 M, X5 M Comp., X5 M60iX, X6 35i, X6 35iX, X6 40i, X6 40iX, X6 M, X6 M Comp., X6 M60iX, X7 40iX, X7 M60iX, XM, XM Label, Z4 2.5i, Z4 28i, Z4 3.0i, Z4 30i, Z4 M40i, Z8 Image image

Not Offered By Bmw

BMW

BMW
